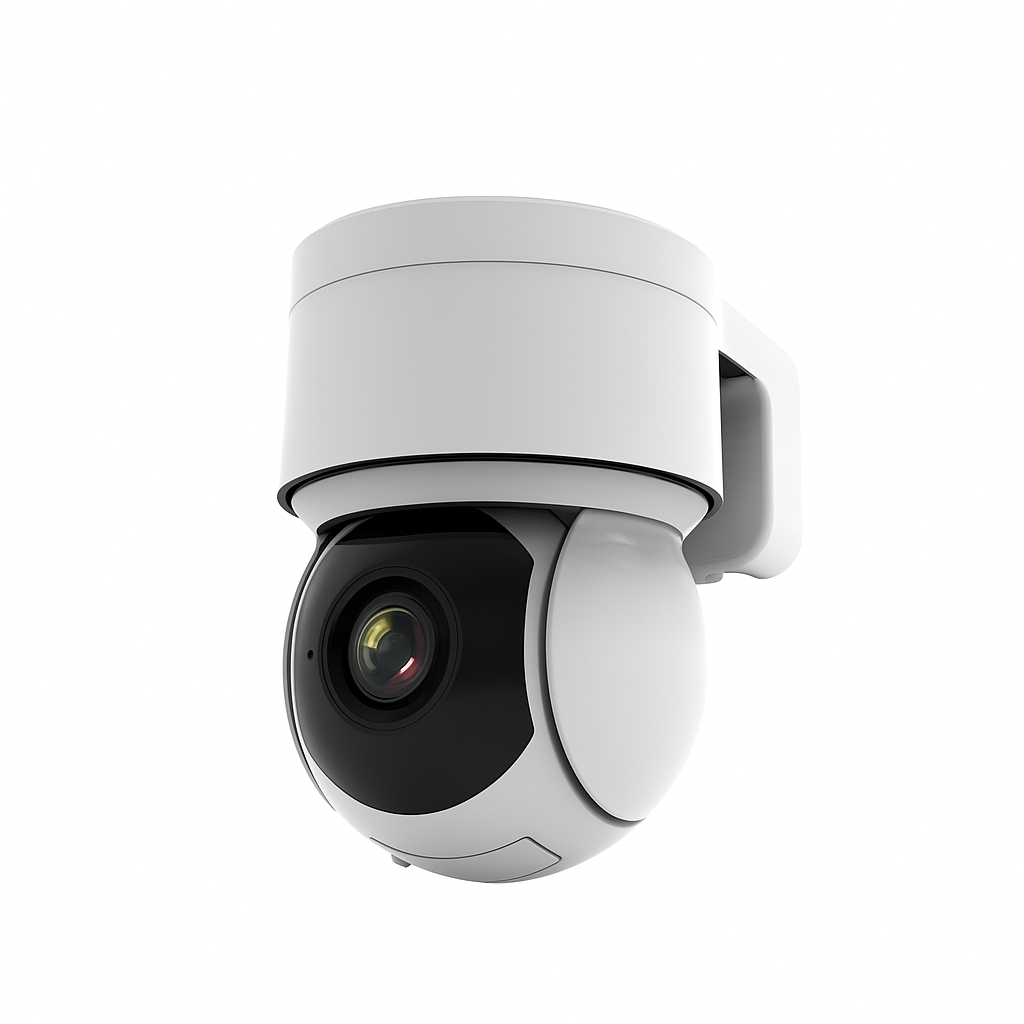

VantaGuard Helios 4K PTZ Dome Camera

The VantaGuard Helios 4K PTZ Dome Camera is engineered for premium perimeter and wide-area surveillance. Its compact wall-mount dome houses a precision gimbal with silent pan/tilt motors and a fast zoom lens for long-range clarity. Built for professional installs, the Helios delivers true 4K video, smart tracking, and rock-solid PoE networking in a minimalist, weather-sealed enclosure suited to indoor or outdoor use.

Specifications

• Material: IP66 aluminum alloy housing, UV-resistant polycarbonate dome, IK10 impact rating

• Dimensions: 150 mm (H) x 120 mm (W) x 165 mm (D) including wall bracket

• Features: 4K UHD video, 20x optical zoom, pan/tilt/zoom with auto-tracking, WDR, H.265

• PTZ Range: Pan 360° endless, Tilt −15° to 90°, 0.1–120°/s presets

• Storage & Power: PoE+ (802.3at), microSD up to 512 GB, ONVIF, -30°C to 60°C

Features

• 4K Ultra-HD Imaging: Back-illuminated sensor with wide dynamic range for scene detail

• 20x Optical Zoom & Autofocus: Capture license-plate-level clarity at long distances

• Intelligent Auto-Tracking: Locks onto people or vehicles and follows them automatically

• Night Vision: Low-light color mode with IR up to 60 m for round-the-clock coverage

• Pro-Grade Build: IP66 weatherproof, IK10 anti-vandal dome, surge protection

• Simple Integration: PoE+, ONVIF, RTSP, and secure HTTPS management with role controls

Maintenance

• Daily: Verify stream health and check for obstructions on the dome

• Weekly: Clean dome with microfiber and mild solution; review firmware and logs

• Annually: Inspect seals, mounting bolts, and surge protection; recalibrate PTZ presets

Warranty

• Camera Body & Gimbal: 3 years

• Motors, Sensor & Electronics: 2 years
